OVERVIEW

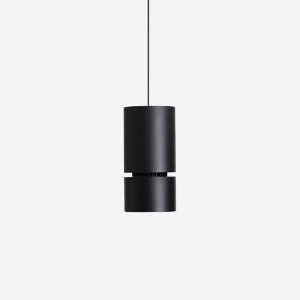

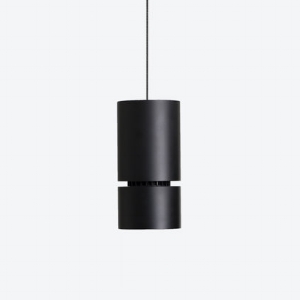

Collection of LED pendants for commercial applications. Timeless design with harmonious proportions this elegant series of suspensions is suitable for  most modern interiors.
Proprietary light weight heat sink design with exceptional thermal performance yields reliable color consistency and output performance during the life of the product.

Producing almost 5000 lumens the STUDIO series is among the best performing luminaires in the industry.
107  lm / W delivered (3000 K)

Supplied with Triac or ELV dimmable driver compatible with most incandescent dimmer.

The Pendant can also be mounted on a Track

Selected products available for Quick Ship Program

FEATURES


High efficiency system up to 107 lm / W

Field interchangeable optics

Canopy or track mounted

UL listed

5 year limited warranty

Black matte or White

MADE IN CANADA

SPECIFICATIONS


Power  12.5 to 49 W

Output  810 to 4675 lumens

Distributions  Spot / Narrow FloodFlood / Wide flood

Color   2700 / 3000 / 3500 / 4000 K

Cri  80 / 90

Controls   Triac / ELV / 0-10

Lumen maintenance  L90 132 000 hours



BROCHURE


MODELS / DOWNLOADS



STUDIO Small 12.5W to 19.5W Spec ► Ies/Cad ► Instructions ►FULL SPECTRUM Spec ► Ies/Cad ► Instructions ►DIM TO WARM Spec ► Ies/Cad ► Instructions ►

STUDIO Small
Model: 1770CP
Spec Ies/Cad Instructions

Quick Ship

FULL SPECTRUM
Spec Ies/CadInstructions

DIM TO WARM
Spec Ies/Cad Instructions

STUDIO Medium 20.5W to 35.5W Spec ► Ies/Cad ► Instructions ►FULL SPECTRUM Spec ► Ies/Cad ► Instructions ►DIM TO WARM Spec ► Ies/Cad ► Instructions ►

STUDIO Medium
Model: 1780CP
Spec Ies/Cad Instructions

Quick Ship

FULL SPECTRUM
Spec Ies/Cad Instructions

DIM TO WARM
Spec Ies/Cad Instructions

STUDIO Large 20.5W to 49W Spec ► Ies/Cad ► Instructions ►FULL SPECTRUM Spec ►  Ies/Cad ► Instructions ►DIM TO WARM Spec ►  Ies/Cad ► Instructions ►

STUDIO Large
Model: 1790CP
Spec Ies/Cad Instructions

FULL SPECTRUM
Spec Ies/Cad Instructions

DIM TO WARM
Spec Ies/Cad Instructions



STUDIO Track Pendant
The Studio Pendant can also be mounted onto a track

STUDIO Small
Model: 1770P
SpecIes/CadInstructions

STUDIO Medium
Model: 1780P
SpecIes/CadInstructions

STUDIO Large
Model: 1790P
SpecIes/CadInstructions



1 Circuit Track
120V

Spec Instructions

2 Circuits Track
120V or 277V

SpecInstructions


ACCESSORIES

A complete range of accessories is available for applications where shielding the  aperture is desired.
Colorless optical glass lenses allow to further customize the light distribution.




Also available as

STUDIO Projector

STUDIO Projector




1770-P 1780-P 1790-P
