OVERVIEW

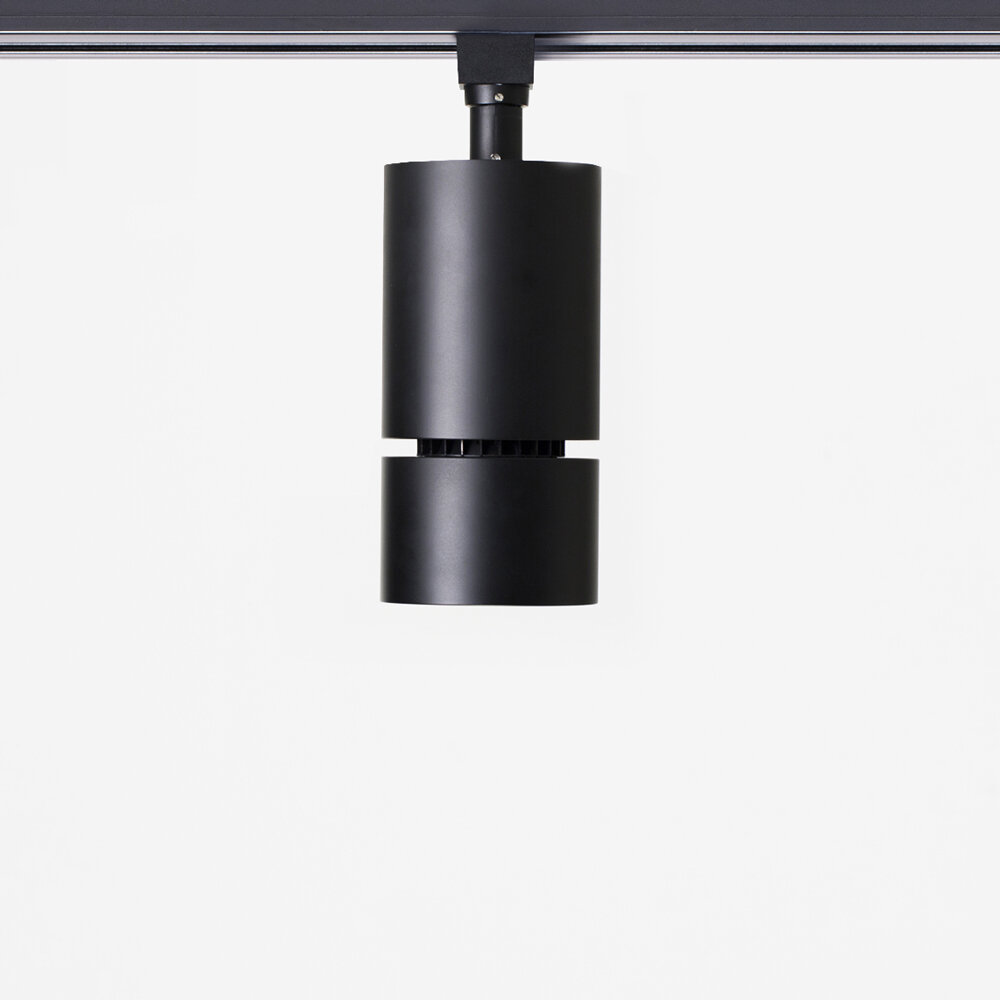

Collection of LED track projectors for commercial applications. Timeless design with harmonious proportions this elegant series of projectors is suitable for most modern interiors.
Proprietary heat sink design with exceptional thermal performance yields reliable color consistency and output performance during the life of the product.

Producing up to 5000 lumens, the Studio series is among the best performing luminaires in the industry.
100 lm / W delivered (3000 K)



Supplied with Triac or ELV dimmable driver compatible with most incandescent dimmer.

Selected products available for Quick Ship Program

AR Product Winner 2017 Logo.png


FEATURES


High efficiency system up to 100 lm / W

Field interchangeable optics

Track or base mounted

Lockable on all axis

UL and DLC listed

5 year limited warranty

Black matte or White

MADE IN CANADA

SPECIFICATIONS


Power  12.5 to 49 watts

Output  810 to 5340 lumens

Distributions Spot / Narrow Flood / Flood / Wide flood / Wall Washer

Color   2700K / 3000K / 3500K / 4000K

Cri  80 / 90 / Full spectrum

Controls   Triac / ELV / 0-10

Lumen maintenance   L90 132 000 hours



BROCHURE


APPLICATION IMAGES


MODELS / DOWNLOADS



STUDIO Mini 14W to 18.5W Up to 1700 lm  STATIC WHITE Spec ► Ies/Cad ► Instructions ►FULL SPECTRUM Spec ► Ies/Cad ► Instructions ►DIM TO WARM Spec ► Ies/Cad ► Instructions ►

STUDIO Mini
Model: 1760

STATIC WHITE
SpecIes/CadRevitInstructions

FULL SPECTRUM
SpecIes/CadRevitInstructions

DIM TO WARM
Spec Ies/Cad RevitInstructions

STUDIO Small 12.5W to 19.5W Up to 1920 lm  STATIC WHITE Spec ► Ies/Cad ► Instructions ►FULL SPECTRUM Spec ► Ies/Cad ► Instructions ►WALL WASHER Spec ► Ies/Cad ► Instructions ►DIM TO WARM Spec ► Ies/Cad ► Instructions ►

STUDIO Small
Model: 1770

STATIC WHITE
Spec Ies/Cad Revit Instructions

FULL SPECTRUM
Spec Ies/Cad Revit Instructions

WALL WASHER
Spec Ies/Cad Instructions

WALL WASHER FULL SPECTRUM
Spec Ies/Cad Instructions

DIM TO WARM
Spec Ies/Cad Revit Instructions

Quick Ship

STUDIO Medium 20.5W to 35.5W Up to 3290 lm  STATIC WHITE Spec ► Ies/Cad ► Instructions ►FULL SPECTRUM Spec ► Ies/Cad ► Instructions ►WALL WASHER Spec ► Ies/Cad ► Instructions ►DIM TO WARM Spec ► Ies/Cad ► Instructions ►

STUDIO Medium
Model: 1780

STATIC WHITE
Spec Ies/Cad Revit Instructions

FULL SPECTRUM
Spec Ies/Cad Revit Instructions

WALL WASHER
Spec Ies/Cad Instructions

WALL WASHER FULL SPECTRUM
Spec Ies/Cad Instructions

DIM TO WARM
Spec Ies/Cad Revit Instructions

Quick Ship

STUDIO Large 20.5W to 49W Up to 4675 lm  STATIC WHITE Spec ► Ies/Cad ► Instructions ►FULL SPECTRUM Spec ► Ies/Cad ► Instructions ►WALL WASHER Spec ► Ies/Cad ► Instructions ►DIM TO WARM Spec ► Ies/Cad ► Instructions ►

STUDIO Large
Model: 1790

STATIC WHITE
Spec Ies/Cad Revit Instructions

FULL SPECTRUM
Spec Ies/Cad Revit Instructions

WALL WASHER
Spec Ies/Cad Instructions

DIM TO WARM
Spec Ies/Cad Revit Instructions

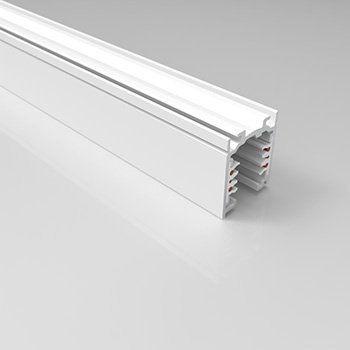

TRACKS

Professional track systems suitable for architectural or retail applications.
Recessed, surface mounted or suspended these systems are suitable for commercial or
institutional applications.


Tracks with dedicated data conductors for other dimming protocols are available on
demand, please consult your sales representative.

1 Circuit Track
120V
SpecInstructions

Quick Ship

2 Circuit Track
120V OR 277V
SpecInstructions

2 Circuit with Data
120V OR 277V SpecInstructions

1 or 2 Circuit Track Recessed (Trim)
120V OR 277V
Model: 3702
SpecInstructions

1 or 2 Circuit Track Recessed
(Grid Ceiling)

120V OR 277V
Model: 3705
SpecInstructions



ACCESSORIES

A complete range of accessories is available for applications where shielding the light aperture is desired. Colorless optical glass lenses allow to further customize the light distribution.



WALL WASHER

New wall washer optics for uniform vertical illumination. The wall washer (WW1) optic offers a wide distribution specifically designed to provide peak illumination at the center of the surface while the diffuse wall washer (WW2) optic is intended to provide a wall wash effect with a softer distribution.

Read More >>


ALSO AVAILABLE AS

STUDIO Pendant

STUDIO Pendant




1770 1780 1790
