OVERVIEW


Collection of wall luminaires for exterior applications.
Simple contemporary design with narrow or very narrow light distributions. These luminaires are ideal for accent lighting of architectural details.

Exceptional European build quality with high corrosion resistant finish. Robust marine grade die-cast aluminum construction with stainless steel fasteners and factory sealed glass diffuser.

FEATURES


Available in 3 sizes

Round or Square design

Integral high efficiency electronic driver > 50,000 H

Operating temperature -30°C / +30°C

IP65, UL Listed for wet location

White or Aluminum gray

5 year limited warranty

SPECIFICATIONS


Power  2.2 / 3.5 / 7.5 / 21.5 watts

Output  from 75 to 1488lumens

Distributions  Downward symmetric

Color  2700, 3000, 4000 K

Cri  80, 90

Controls 0-10V

Lumen maintenance L70  50 000 Hours

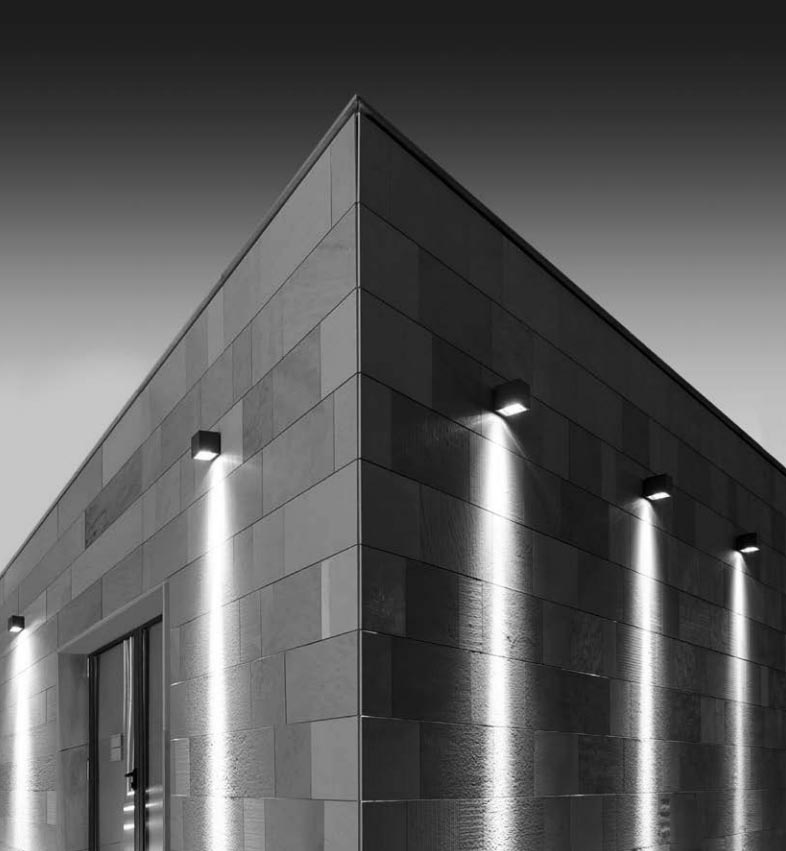

Application Images


MODELS / DOWNLOADS



SQUARE

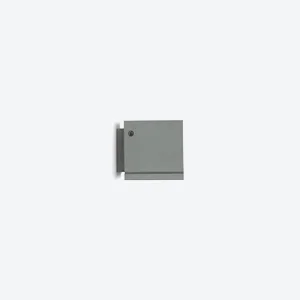

MICROLOFT Square 2.2W 75 lm Spec ► IES/CAD ► Instructions

MICROLOFT Square
Model: S6625
SpecIESCADInstructions

MINILOFT Square 6W 300 lm Spec ► IES/CAD ► Instructions

MINILOFT Square
Model: S6618 or S6655
SpecIESCADInstructions

LOFT Square 21.5W 1085Im to 1100lm lm Spec ► IES/CAD ► Instructions

LOFT Square
Model: S6695 or S6678
SpecIESCADInstructions




ROUND

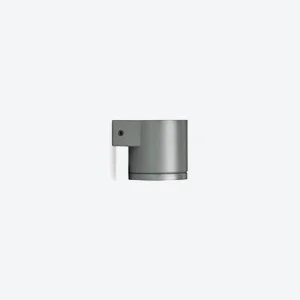

MICROLOFT Round 2.2W 75 lm Spec ► IES/CAD ► Instructions

MICROLOFT Round
Model: S6622
SpecCAD Instructions

MINILOFT Round 6W 300 lm Spec ► IES/CAD ► Instructions

MINILOFT Round
Model: S6658 or S6628
SpecIESCAD Instructions

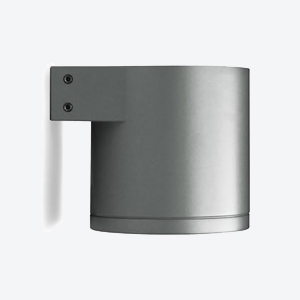

LOFT Round 21.5W 845 lm Spec ► IES/CAD ► Instructions

LOFT Round
Model: S6680 or S6689
SpecIESCAD Instructions



ALSO AVAILABLE AS

S.6625W S.6678W S.6695W S.6680W S.6680N S.6689W S.6689N S.6622W S.6622N S.6618W S.6618N S.6655W S.6628W S.6658W
