OVERVIEW

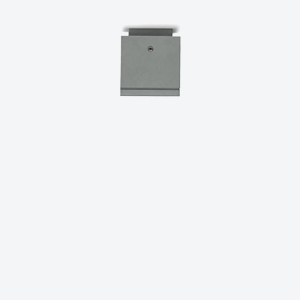

Collection of ceiling surface mounted luminaires for exterior applications.

Exceptional European build quality with high corrosion resistant finish. Robust marine grade die-cast aluminum construction with stainless steel fasteners and factory sealed glass diffuser.

FEATURES


Available in 3 sizes

Square design

Integral high efficiency electronic driver > 50,000 H

Operating temperature -30°C / +30°C

IP65, UL Listed for wet location

White or Aluminum gray

5 year limited warranty

SPECIFICATIONS


Power  2.2 / 7.5 / 21.5 watts

Output  from 75 to 1269 lumens

Distributions  Downward symmetric

Color  2700, 3000, 4000 K

Cri  80, 90

Controls 0-10V

Lumen maintenance L70  50 000 Hours


MODELS / DOWNLOADS



MICROLOFT 2.2W 75 lm Spec ► IES/CAD ► Instructions

MICROLOFT
Model: S6615
SpecCADInstructions

MINILOFT 6W 300 lm Spec ► IES/CAD ► Instructions

MINILOFT
Model: S6646
SpecIESCADInstructions

LOFT 21.5W 840 lm Spec ► IES/CAD ► Instructions

LOFT
Model: S6675
SpecIESCAD Instructions



ALSO AVAILABLE AS

S.6615W S.6646W S.6675W
