OVERVIEW

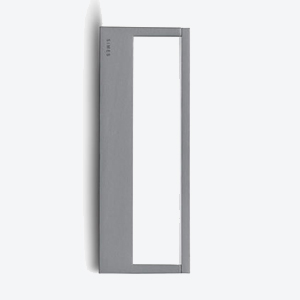

Collection of decorative wall mounted luminaires for exterior applications.
The indirect distribution reflect light from the wall surface enhancing the building color and texture.

Exceptional European build quality with high corrosion resistant finish.
Robust marine grade die-cast aluminum construction, with stainless steel fasteners, factory sealed glass diffuser.


Brochure ►

FEATURES


Available in 2 sizes

Low glare Indirect light distribution

Operating temperature -30°C / +30°C

IP54, UL Listed for wet location

White, Black or Aluminum gray

5 year limited warranty

SPECIFICATIONS



Power 13.5 / 24 watts

Output  561 / 963 lumens

Distribution  Indirect

Color  2700 - 3000 - 4000 K

Cri   80 - 90

Control Consult  factory

Lumen maintenance : L80  70,000 Hours

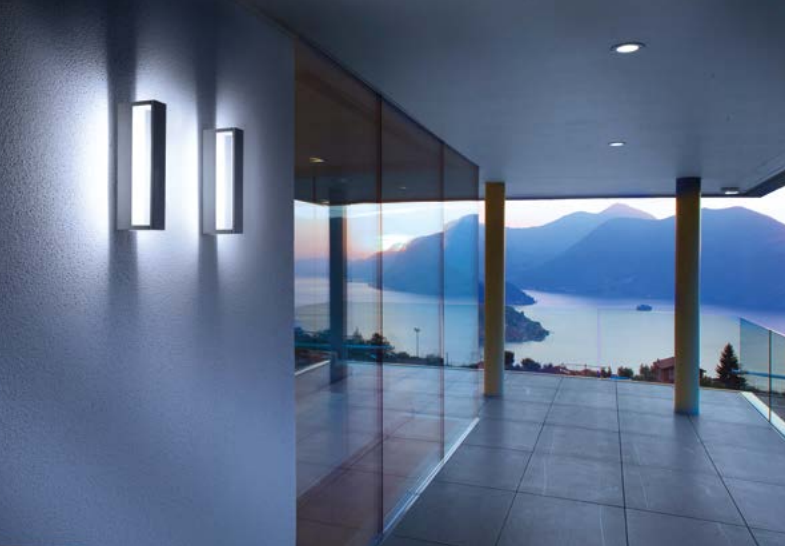

application images


MODELS / Downloads



MINICOOL  13.5W 490 lm Spec ► IES/CAD ► Instructions ►

MINICOOL
Model: S7231
SpecIESCAD Instructions

COOL 24W 950 lm Spec ► IES/CAD ► Instructions ►

COOL
Model: S7270
SpecIESCADInstructions



ALSO AVAILABLE AS

S.7231W S.7270W S.7270N
