OVERVIEW


Collection of bollards for commercial and institutional applications.
Exceptional European build quality with high corrosion resistant finish.
Robust marine grade die-cast aluminum construction, with stainless steel fasteners and factory sealed glass diffuser.


Brochure ►

FEATURES


2 mounting heights

Operating temperature -30°C / +30°C

High efficiency electronic driver > 50,000 H

IP54, IK06, UL Listed for wet location

White or Burnished bronze

5 year limited warranty

SPECIFICATIONS


Power  13.5W

Output  485lm

Distributions  Downward 360

Color  2700 / 3000 / 4000 K

Cri  80, 90

Control On demand

Lumen maintenance  L80  70 000 Hours




MODELS / Downloads

MINICOOL Bollard Wood 220mm 13.5W 490 lm Spec ► IES/CAD ► Instructions ►

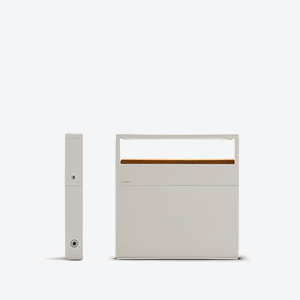

MINICOOL Bollard Wood 220mm
Model: SL9236

SpecIESCAD Instructions

MINICOOL Bollard Wood 580mm 13.5W 490 lm Spec ► IES/CAD ► Instructions ►

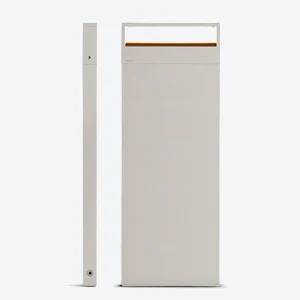

MINICOOL Bollard Wood 580mm
Model: SL9241

SpecIESCADInstructions



ALSO AVAILABLE AS

S.L9236N S.L9236W S.L9241W S.L9241N
