OVERVIEW
With a high or a compact slim profile, this surface luminaire is available with General Light illumination; or can house iGuzzini low voltage products through an iGuzzini low voltage track. Equipped with either a frosted or a microprismatic white PMMA diffuser that provides a uniform distribution, it is available as single modules or continuous runs with a wide distribution suitable for general lighting.
FEATURES
Direct distribution.
UL listed
5 year limited warranty
White or black
MADE IN CANADA
SPECIFICATIONS TRACK
Distributions Low Voltage Track to be used only with iGuzzini 48V low voltage modules.
Controls 0-10V down to 7% / DALI down to 7%
SPECIFICATIONS GENERAL LIGHT
Power 5.6 / 8.3 / 11.2 watts per foot
Output 439 to 1026 lumens per foot
Distributions General lighting
Color 3000K / 3500K / 4000K
Cri 90
Controls 0-10V down to 1% / Leading and Trailing Edge
Lumen maintenance L90, 66 000 hours
PRODUCT FEATURES
SIZE COMPARISON
Smaller form factor with no compromise on the performance.
SOPHISTICATED SLIM PROFILE
Minimalist slim shape for subtle integration with architecture.
PROFESSIONAL GRADE OPTICS
PMMA premium quality optics designed for visual comfort and performance.
ILLUMINATED MECHANICAL JOINERS
Provides a continuous light without "dead zones" in between units; 90° joiner, T joiner and cross joiner.
MODELS / DOWNLOADS

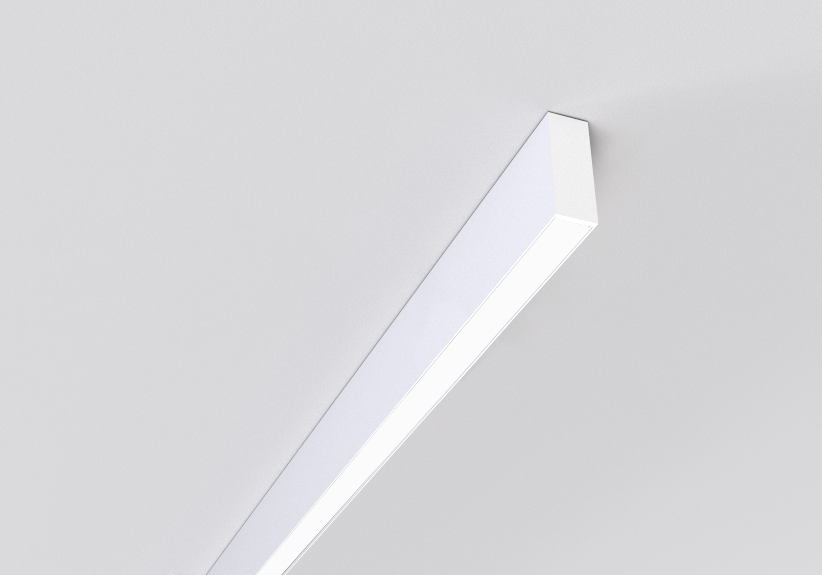

LINEAR SMALL General Light
Surface
Model: 3404 & 3414
Downlight
Spec ► IES/CAD ► Instructions ►

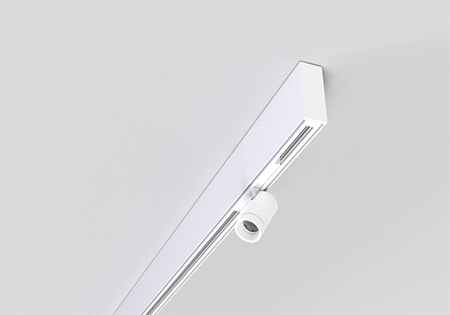

LINEAR SMALL with Low Voltage Track
Surface
Model: 3404 & 3414
Track downlight
Spec ► IES/CAD ► Instructions ►
Also available as
