overview

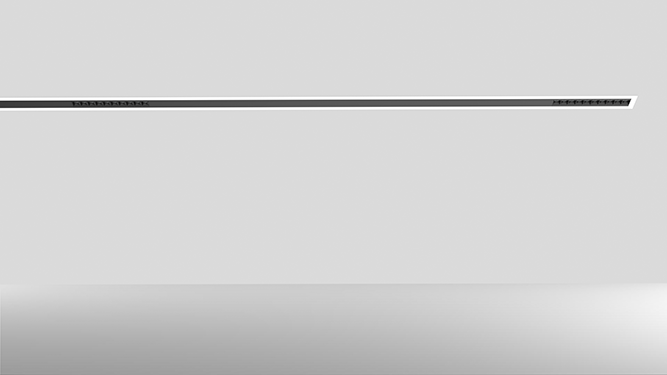

Elegant LED profile system with small aperture, only 1 ¼". Modular continuous systems configured to obtain bespoke solutions by incorporating Laser Blade XS modules from iGuzzini. Available as single modules or continuous runs.
Powered by iGuzzini
FEATURES
Direct distribution.
UL listed
5 year limited warranty
White or Black
MADE IN CANADA
SPECIFICATIONS
Power 13.5 to 34.5 watts per module
Output 291 to 2241 lumens per module
Color 2700K/ 3000K / 3500K / 4000K
Cri 90
Controls 0-10V down to 1% / Leading and Trailing Edge
Lumen maintenance L80 (LM-79), 50 000 hours
PRODUCT FEATURES
SIZE COMPARISON
Smaller form factor with no compromise on the performance.
SOPHISTICATED SLIM PROFILE
Minimalist slim shape for subtle integration with architecture.
PROFESSIONAL GRADE OPTICS
PMMA premium quality optics designed for visual comfort and performance.
ILLUMINATED MECHANICAL JOINERS
Provides a continuous light without "dead zones" in between units; 90° joiner, T joiner and cross joiner.
SYSTEM OPTIONS
This versatile system can be specified as independent modules (SOLO UNIT) or as continuous systems (INLINE SYSTEM). These modules are available in 4 or 8 ft length with downlight or wall washer optics.
The INLINE SYSTEM can be combined to the desired length maintaining consistent spacing between light modules.
The SINGLE MODULES are supplied with only one Laser Blade unit and can be ordered with remote drivers.
DOWNLIGHT DISTRIBUTION
The system is designed around the award winning original iGuzzini optics.
The optic system delivers a sharp cutoff with perfectly defined beams.
WALL WASHER
The wall washer optic provides uniform distribution on vertical surfaces.
MODELS / DOWNLOADS
inline system
LINEAR SMALL LASER BLADE XS
Model: 3452
Recessed - Inline System
Spec ► IES/CAD ► Instructions ►
solo unit
LINEAR SMALL LASER BLADE XS
Model: 3452
Recessed - Solo Unit
Spec ► IES/CAD ► Instructions ►

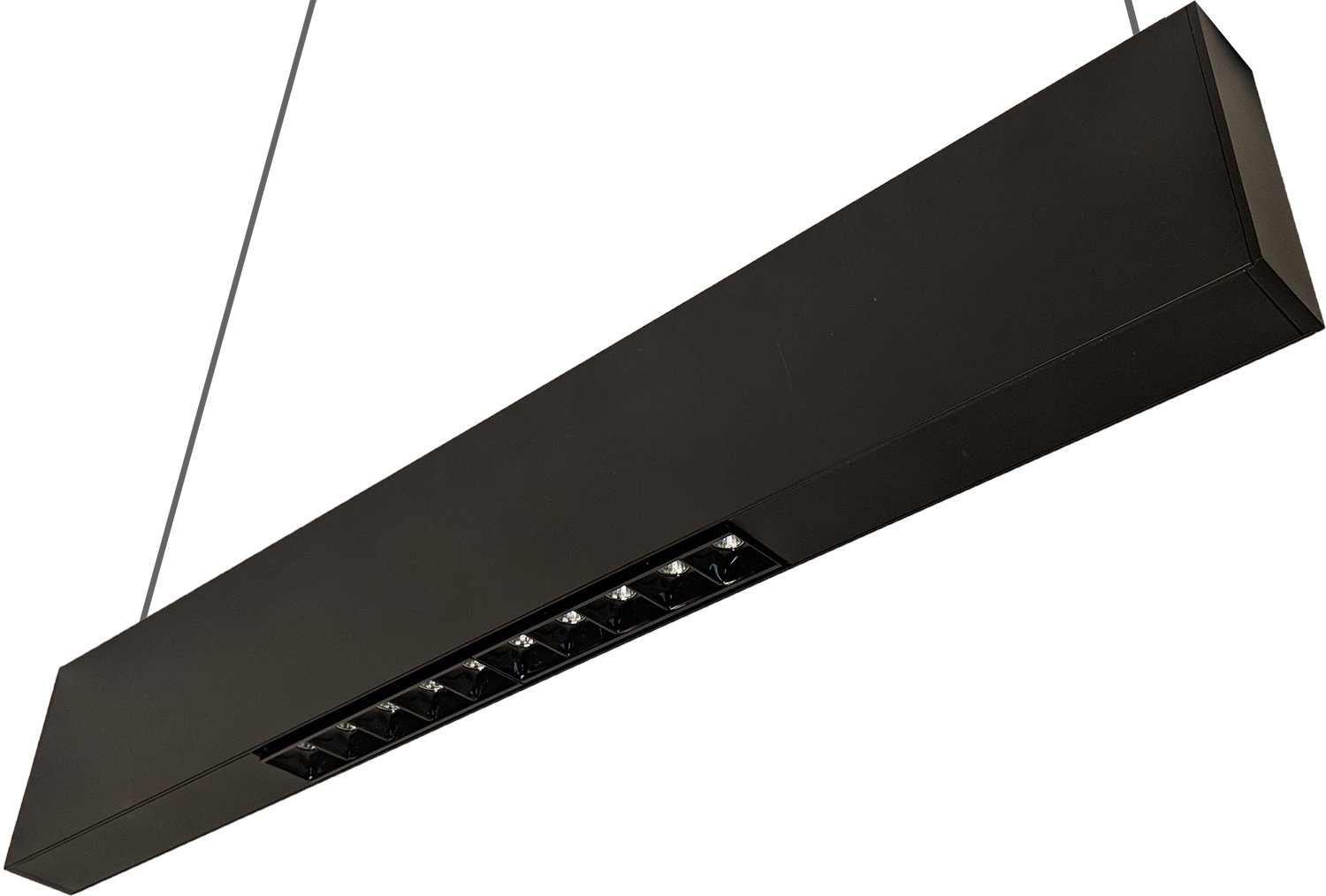

Also available as
