OVERVIEW

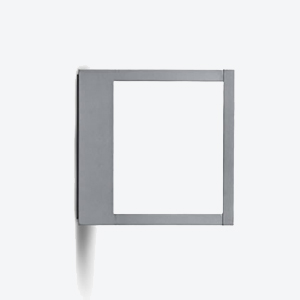

Collection of wall luminaires for exterior applications.
The indirect distribution reflect light from the wall surface enhancing the building color and texture.

Exceptional European build quality with high corrosion resistant finish.
Robust marine grade die-cast aluminum construction, with stainless steel fasteners, factory sealed UV resistant polycarbonate diffuser.


Brochure

FEATURES


Low glare Indirect light distribution

Integral high effiecncy electronic driver > 50,000 H

Operating temperature -30°C / +30°C

IP54, IK06, UL Listed for wet location

White, Black or Aluminum gray

5 year limited warranty

SPECIFICATIONS


Power  7 / 12.5 / 26 watts

Output  from 203 to 1133 lumens

Distribution  Indirect up / down

Color  2700, 3000, 4000 K

Cri   80, 90

Control Consult  factory

Lumen maintenance : L80  70,000 Hours


MODELS / Downloads



MICROCOOL Square 7W 200 lm Spec ► IES/CAD ► Instructions ►

MICROCOOL Square
Model: S7282
SpecIESCADInstructions

MINICOOL Square 12.5W 480 lm Spec ► IES/CAD ► Instructions ►

MINICOOL Square
Model: S7281
SpecIESCAD Instructions

COOL Square 28.5W 1175 lm Spec ► IES/CAD ► Instructions ►

COOL Square
Model: S7280
SpecIESCADInstructions



ALSO AVAILABLE AS



S.7280W S.7281W S.7282W
