OVERVIEW

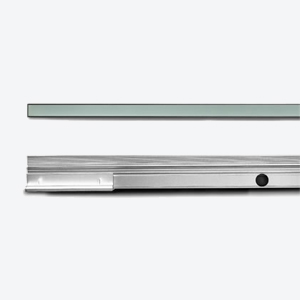

Recessed walk over luminaire for exterior applications.
This system allows for limitless design of linear patterns or continuous light lines.
Floor or wall recessed with aluminum back box.

FEATURES


Walkover load 1100 lbs

Glass diffuser or Clear glass

Diffuse direct light distribution

Continuous lines without visible gaps

Operating temperature -20°C / +50°C

IP65, IP67, IK10, UL Listed for wet location

5 year limited warranty

*Remote LED driver required

SPECIFICATIONS


Power  3.2W/ft

Output  95lm/ft or 114lm/ft

Distribution  Direct

Color  3000K

Cri   90

Controls Consult factory

Lumen maintenance  L80  70 000 Hours

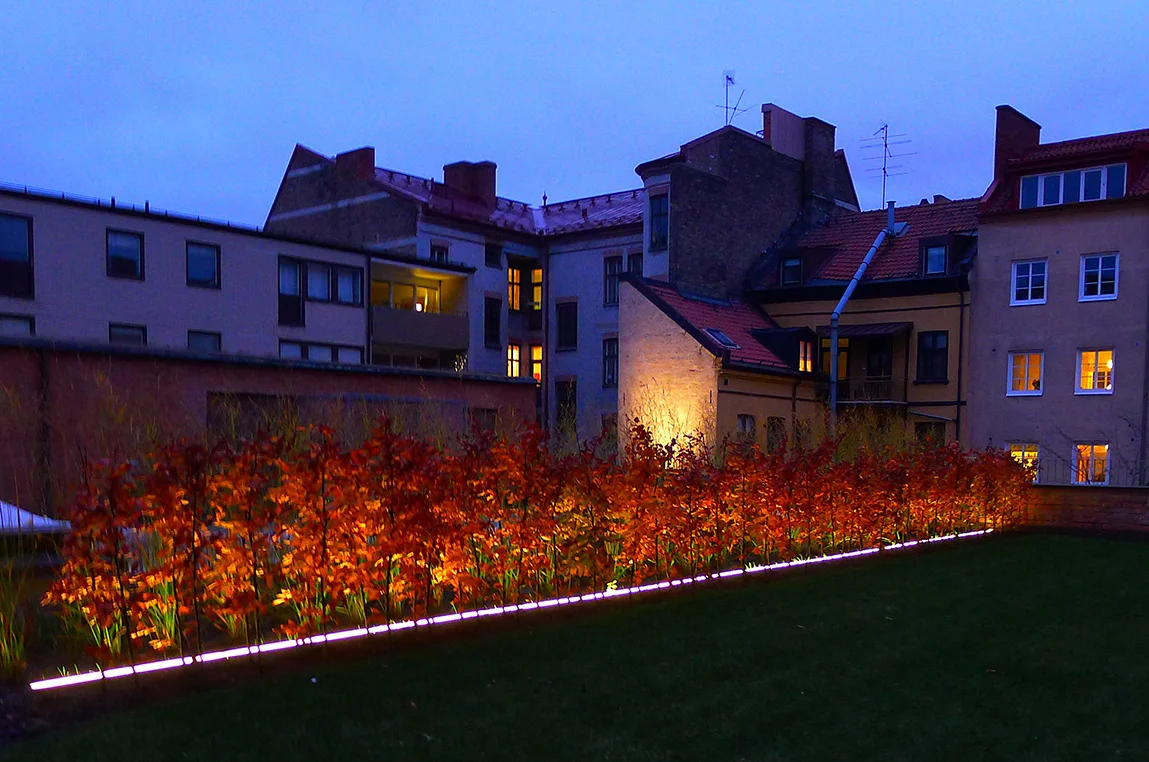

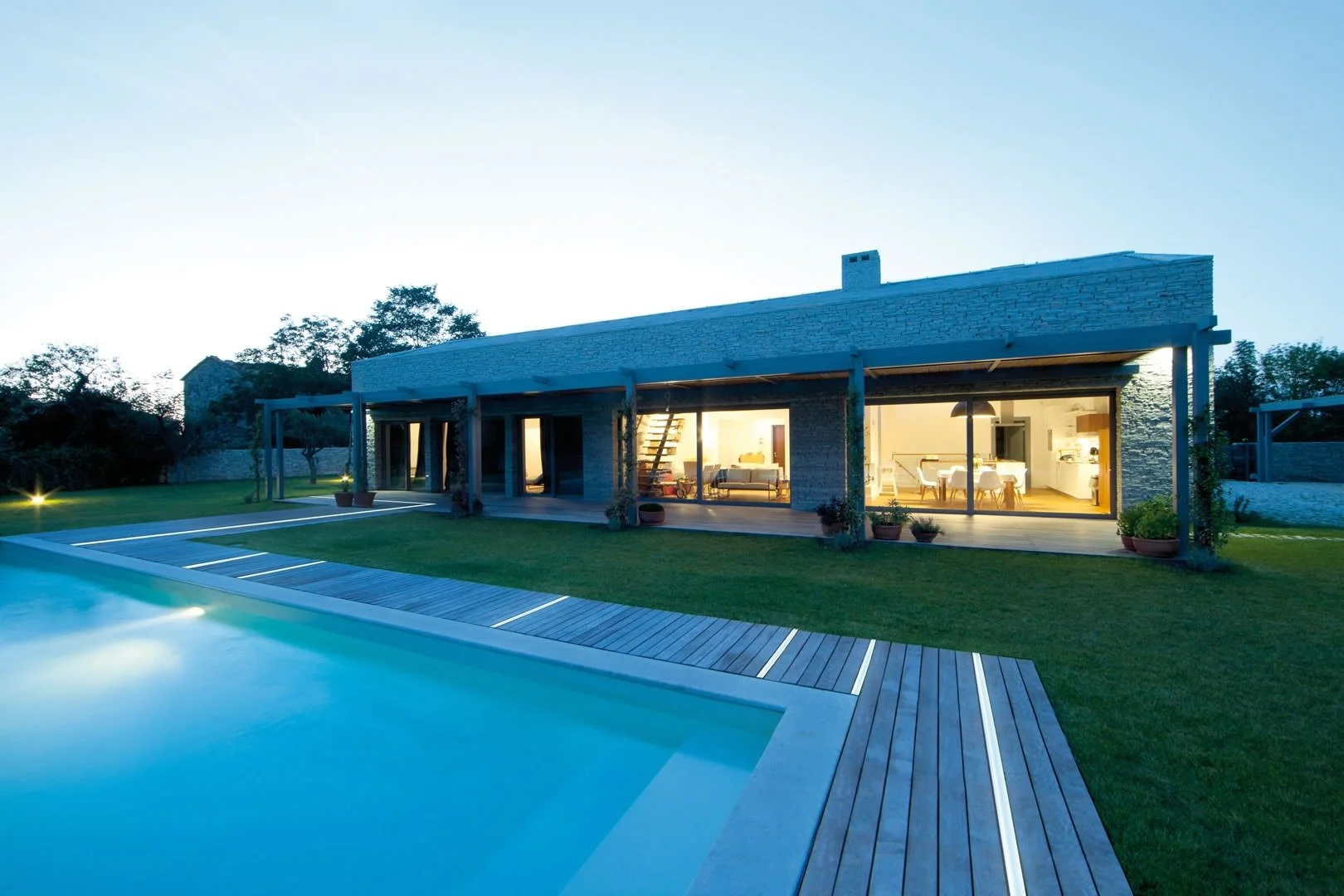

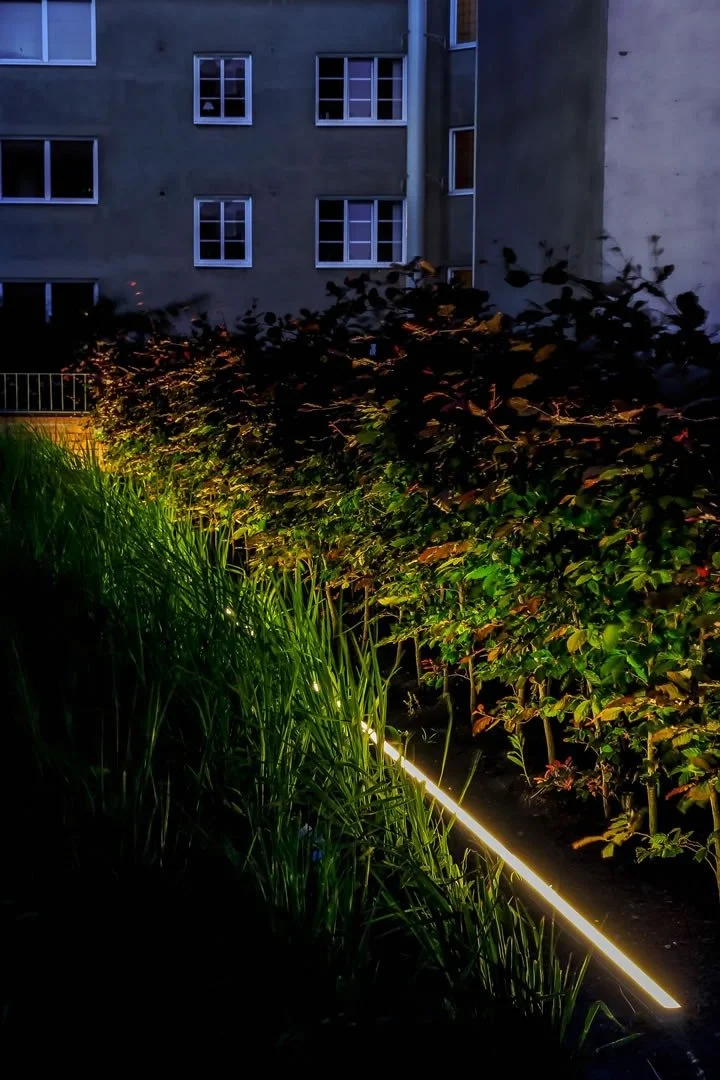

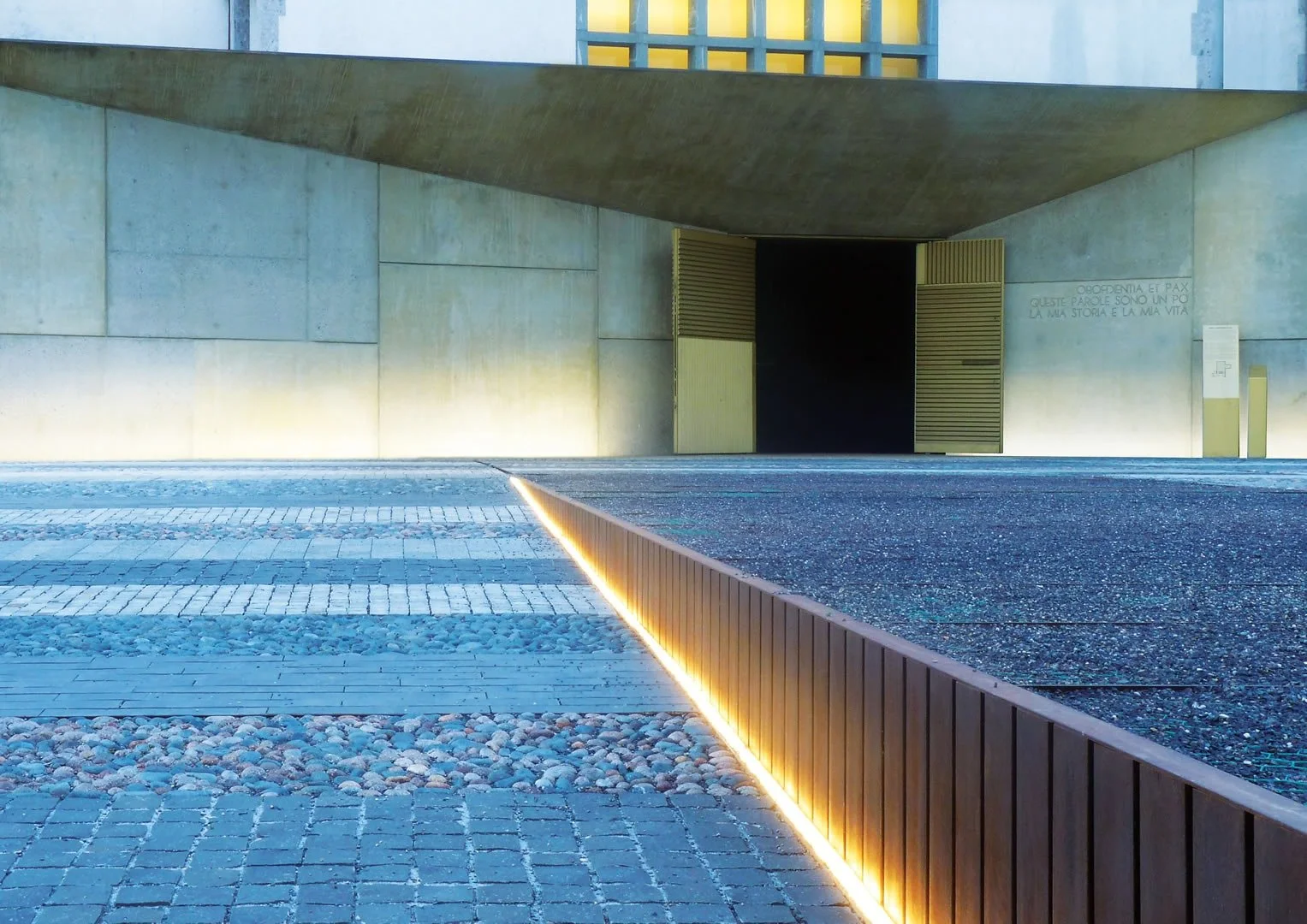

APPLICATION IMAGES


MODELS / Downloads

CONTINUOUS LINE Full Glass 3.5W / 7W / 10.5W Spec ► IES/CAD ► Instructions ►

CONTINUOUS LINE Full Glass
Clear glass: #S7008 #S7013
Acid-Etched glass: #S7018 #S7023
Spec IESInstructions



S.7006W S.7001W S.7011W S.7016W S.7016N S.7012W S.7012N
