OVERVIEW


Collection of LED track projectors for commercial and institutional applications. Original design with circular driver housing and harmonious proportions. This elegant family of projectors is suitable for most modern interiors. Exceptional build quality form CNC machined aluminum and anodized finishes.

Industry leading LED platform yields reliable color consistency and output performance during the life of the product.

Producing almost 2800 lumens the Faretto series is among the best performing luminaires in the industry.
88 lm / W delivered (3000 K)



Supplied with Triac, ELV or 0-10V dimmable driver compatible with most incandescent dimmer.


Brochure ►

FEATURES


High efficiency system up to 104 lm / W

Field interchangeable optics

Tracks or base mounted

Lockable on all axis

UL listed

5 year limited warranty

Clear anodized, Black or White

MADE IN CANADA

SPECIFICATIONS


Power  17.5 to 34.5 watts

Output  1100 to 2865 lumens

Distributions  Spot / Narrow Flood / Flood / Wide Flood

Color   2700 / 3000 / 3500 / 4000 K

Cri  80 / 90 / Full spectrum

Controls   TRIAC-ELV, 0-10V

Lumen maintenance  L80 50,000 hours


APPLICATION IMAGES


MODELS / DOWNLOADS


FARETTO Small 17.5W or 18.5W Up to 1825 lm Spec ► IES/CAD ► Instructions ►FULL SPECTRUM Spec ► IES/CAD ► Instructions ►

FARETTO Small
Model: 1590
SpecIES/CADInstructions

FULL SPECTRUM
SpecIES/CADInstructions

FARETTO Large 20.5 W to 34.5W Up to 2865 lm Spec ► IES/CAD ► Instructions ►FULL SPECTRUM Spec ► IES/CAD ► Instructions ►

FARETTO Large
Model: 1690
Spec IES/CADInstructions

FULL SPECTRUM
SpecIES/CADInstructions




ACCESSORIES

A complete range of accessories is available for applications where shielding the light aperture is desired. Colorless optical glass lenses allow to further customize the light distribution.


TRACKS

Professional tracks systems suitable for architectural or retail applications.
Recessed, surface mounted or suspended these system are suitable for commercial or institutional applications.


Tracks with dedicated data conductors for other  dimming protocols are available on demand, please consult your sales representative.

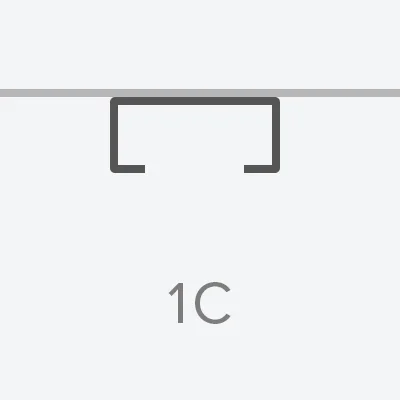

1 Circuit Track
120V
SpecInstructions

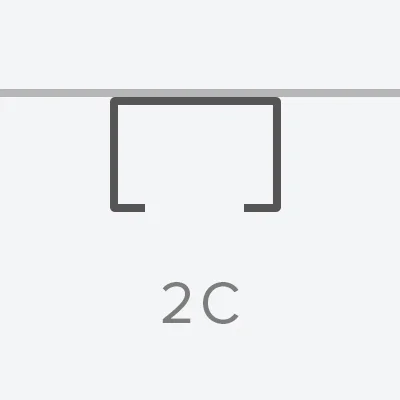

2 Circuit Track
120V or 277V
SpecInstructions

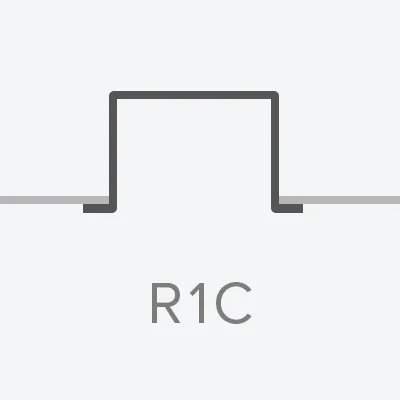

1 or 2 Circuit Track Recessed (Trim)
120V OR 277V
Model: 3702
SpecInstructions

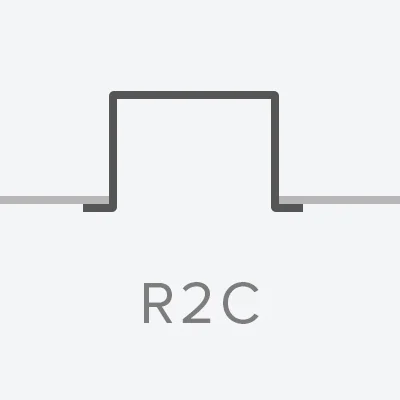

2 Circuit Track Recessed 120V or 277V Spec ► Instructions ►

1 or 2 Circuit Track Recessed
(Grid Ceiling)

120V OR 277V
Model: 3705
SpecInstructions



1590 1590S 1690 1690S 1590C 1690C
